Wallbox Pulsar Max

    Summary

    $4,200.00

    Request for QuotationCompare
    Technical DataStandard Equipment

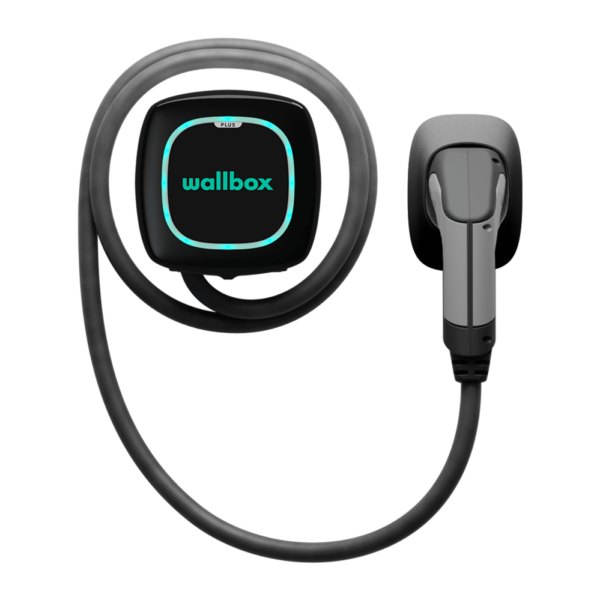

    Wallbox Pulsar Max - Product Description The Wallbox Pulsar Max is a compact and advanced electric vehicle (EV) charger designed to combine cutting-edge technology with user-friendly functionality. It delivers reliable performance while maintaining a sleek, modern design that seamlessly integrates into residential or commercial settings. Key Features: Charging Power Options: Available in 7.4 kW, 11 kW, and 22 kW capacities to suit various vehicle requirements. Smart Connectivity: Equipped with Wi-Fi and Bluetooth, enabling seamless control through the myWallbox App and Portal. Dynamic Power Management: Includes features such as Power Sharing, Power Boost, and Eco-Smart to optimize energy usage and support efficient charging. Durable Build: Compact dimensions (198 x 201 x 99 mm) and a robust design rated at IP55 and IK10 for resistance to dust, water, and impacts. Wide Operating Range: Functions reliably in temperatures from -25°C to 50°C, with storage capabilities from -40°C to 70°C. Safety-Compliant: Certified for UK smart charging regulations, IEC 61851-1 standards, and equipped with DC leakage protection (6 mA) and external RCCB compatibility. Compatibility: Offers Type 1 and Type 2 connectors with a cable length of 5 meters (optional 7 meters for Type 2). Additional Information: User-Friendly Design: Features an intuitive Halo RGB LED indicator for status updates. Flexible Installation: Supports configurations for single-phase (32A) and three-phase (16A or 32A) connections, catering to diverse electrical setups. Compact and Lightweight: Weighing only 1.3 kg (without cable), making it easy to install and manage.

    Wallbox Pulsar Max

    طلب عرض أسعار Compare

    Overall Attributes

    • UPC

      3.0030013710611E+15

      Brand

      Wallbox

      Model

      PULSAR MAX

    Compliance and Standards

    • Standards

      IEC 61851-1, IEC 61851-21-2, IEC 62196-2, LVD 2014/35/EU, CE mark, EMC Directive 2014/30/EU, ROHS Directive 2011/65, BS 7671:2018 + A1:2020 + A2:2022

    Electrical Attributes

    • Output Voltage

      400V

      Output Current

      16 A , 32 A

      Connection Power

      3.7 KW , 44 KW

      Supply Voltage

      230 V, 400 V

      Input Current

      16 A

      Number of Phases

      1 , 3

      Rated Current

      16A , 32A

      Rated Frequency

      50 Hz , 60 Hz

      Input Voltage Range

      230 V , 400 V

      Maximum Output Power

      22 kW

      Output Voltage

      400V

      Rated Voltage

      230V , 440V

      EV Supply Equipment

      1

      Charging Type

      Mode 3

      Operating Frequency

      50 Hz or 60 Hz

    Mechanical Attributes

    • Connection Size and Type

      Type 2

      Mounting

      Wall

      Mechanical Shock

      IK10

    Connectivity and Networking

    • Connectivity

      Wi-Fi, Bluetooth

      Communication Interface

      Wi-Fi, Bluetooth

      Communication Protocol

      IEC 61851-1, IEC 61851-21-2, IEC 62196-2, LVD 2014/35/EU, CE mark, EMC Directive 2014/30/EU, ROHS Directive 2011/65, BS 7671:2018+A1:2020

      Authentication Method

      myWallbox App & Portal

    Health and Safety

    • Protection Rating (IP)

      IP55
